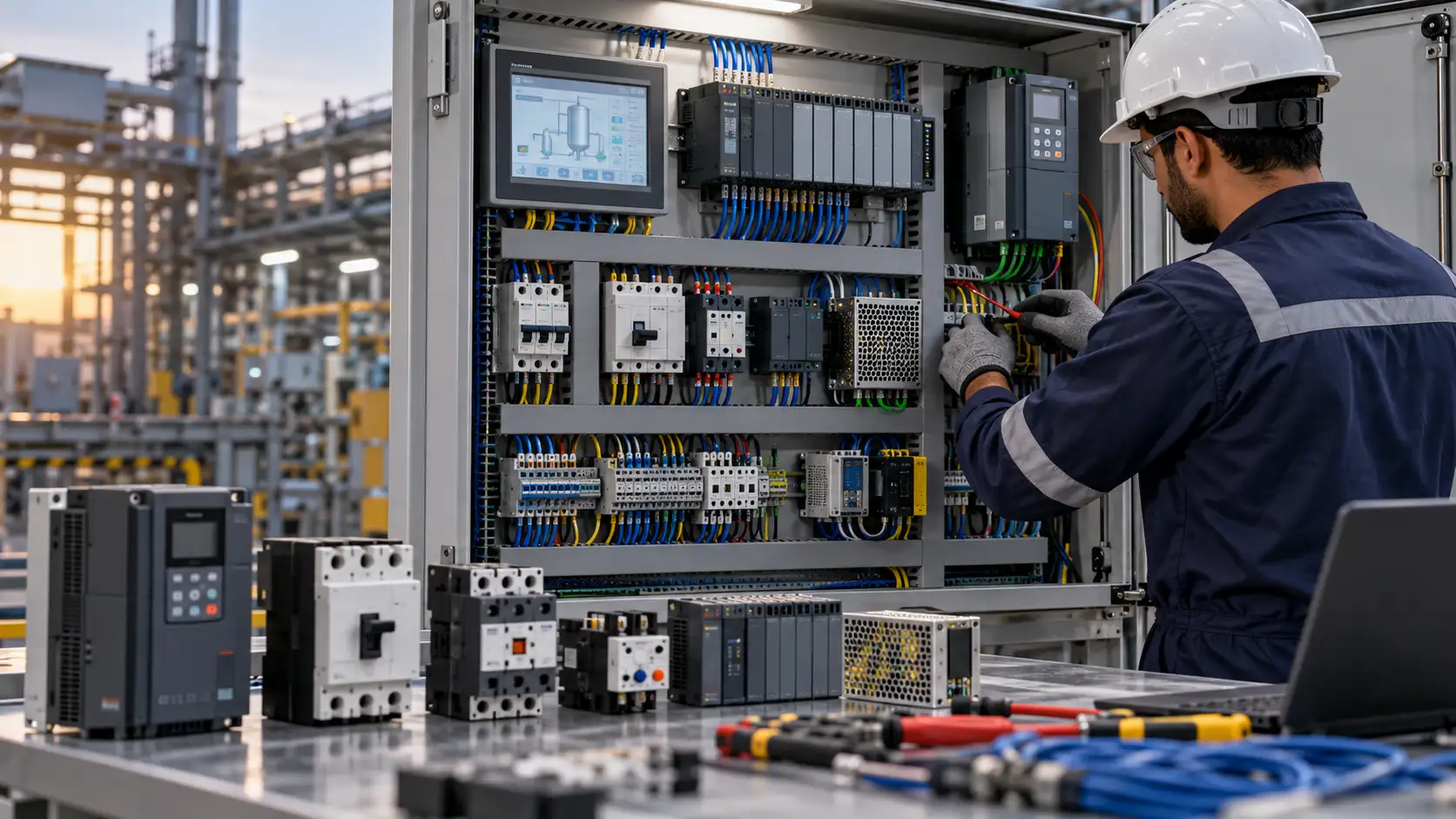

Industrial control panel faults can stop motors, interrupt production, trigger repeated alarms, or cause equipment to behave unpredictably. EMAN FTC provides Control Panel Troubleshooting & Maintenance for PLC panels, VFD panels, MCCs, HMIs, soft starters, relays, contactors, breakers, power supplies, and related control equipment.
Our focus is not just to reset the fault. We check the panel, control signals, wiring, connected equipment, and automation system to identify the real cause before recommending repair or replacement.
For complete automation support, see our Industrial Automation & Control Services .
Common Control Panel Problems We Troubleshoot
| Motors not starting | Repeated breaker trips |
| PLC offline or faulted | Missing PLC inputs or outputs |
| VFD trips | HMI communication loss |
| Contactors not energizing | Panel overheating |
| Unstable sensor signals | Communication faults |
| Intermittent shutdowns | Loose or damaged wiring |
For example, if a motor does not start, the motor itself may be healthy. The actual problem could be a tripped overload relay, failed contactor coil, missing PLC output, VFD fault, or active interlock.
For difficult or recurring problems, our Control System Fault Analysis Services help trace the fault through the complete control chain.
Electrical Control Panel Troubleshooting
Many automation problems start with basic electrical components. We can inspect the protection, switching, power, and wiring components inside the panel.
| Circuit breakers and fuses | Contactors and overload relays |
| Control relays | 24VDC power supplies |
| Terminal blocks | Control wiring |
| Control voltage | Cooling and ventilation |
For example, if several sensors disappear from the PLC at the same time, the sensors may all be healthy. The actual cause could be a failing 24VDC power supply or loose common connection.
PLC Control Panel Troubleshooting
PLC faults can originate from the CPU, I/O modules, wiring, communication network, field devices, or program conditions.
| PLC CPU and module status | Digital and analog I/O |
| PLC power supply | Field-device signals |
| Communication modules | Interlocks and logic conditions |
A pump may refuse to start even when the PLC and motor are healthy. The actual cause may be a low-level sensor activating an interlock.
For PLC-specific faults, see our PLC Troubleshooting & Maintenance Services .
VFD and Motor Control Troubleshooting
Repeated VFD trips do not automatically mean the drive needs replacement. We check the drive together with the motor, load, wiring, and control system.
| VFD fault codes | Motor parameters |
| Start and stop commands | Speed reference |
| Control wiring | PLC communication |
| Motor condition | Mechanical load condition |
For example, an overload trip may be caused by excessive mechanical load or incorrect motor parameters rather than a failed VFD.
See our VFD Installation & Commissioning Services .
HMI and Communication Faults
If an HMI shows incorrect values or loses communication, the HMI itself may not be the problem.
| PLC communication | Ethernet cables and switches |
| Network settings | Incorrect tags |
| Field feedback signals | Communication modules |
If an HMI displays “Motor Off” while the motor is running, the actual issue may be a missing feedback signal reaching the PLC.
Learn more about our HMI Troubleshooting & Configuration Services and SCADA System Integration & Support .
Preventive Control Panel Maintenance
Regular maintenance can identify developing faults before they cause production downtime.
| Loose terminal inspection | Breaker and fuse condition |
| Contactor and relay inspection | 24VDC power verification |
| PLC and I/O status | VFD alarm-history review |
| Cooling fans and filters | Panel temperature |
| Wiring condition | Enclosure cleanliness |
| PLC and HMI backups where applicable | |
Maintenance frequency depends on the panel type, operating environment, system criticality, and manufacturer recommendations.
Corrective Maintenance & Repair
After identifying the fault, corrective work may include:
| Wiring repair | Terminal correction |
| Relay or contactor replacement | Power supply replacement |
| Breaker replacement | VFD parameter correction |
| PLC or I/O troubleshooting | HMI configuration |
| Cooling fan or filter replacement | Communication correction |
The aim is to repair the actual fault rather than replace components unnecessarily.
Control Panel Troubleshooting Guide
| Fault Symptom | Components to Check |
|---|---|
| Motor does not start | Breaker, overload relay, contactor, PLC output, VFD, interlock |
| Breaker trips repeatedly | Short circuit, overload, cable, motor, downstream equipment |
| PLC is offline | 24VDC supply, fuse, CPU, wiring, communication |
| PLC input missing | Sensor, terminal, wiring, I/O module, power supply |
| HMI offline | PLC, Ethernet cable, switch, network configuration |
| VFD trips repeatedly | Motor, load, parameters, supply voltage, wiring |
| Several sensors fail | 24VDC supply, common wiring, terminal blocks |
| Panel overheats | Cooling fan, filters, ventilation, VFD heat |
Repair or Upgrade?
Not every old control panel needs complete replacement. A failed relay, contactor, power supply, or damaged connection may only require repair.
An upgrade may be more practical when components are obsolete, spare parts are unavailable, wiring has been heavily modified, or the same faults keep returning.
Control Panels We Support
| PLC control panels | MCC panels |
| VFD panels | Soft starter panels |
| Pump control panels | HVAC control panels |
| Process control panels | Industrial automation panels |
Control Panel Products & Components
EMAN FTC also supplies electrical and control-panel components for maintenance, replacement, upgrade, and industrial projects.
Control Panel Maintenance Across Saudi Arabia
EMAN FTC supports industrial and commercial projects in Riyadh, Jeddah, Dammam, Jubail, Al Khobar, Yanbu, and other locations across Saudi Arabia.
Our services are suitable for factories, construction companies, electrical contractors, automation companies, warehouses, commercial facilities, and industrial businesses.
Need Help With a Control Panel Fault?
Send us the panel photos, equipment brand/model, fault code, site location, and a short description of the problem.
